HVAC Design – Duct System, Residential, Industrial HVAC Design Services:

We have expertise to deliver high quality, cost efficient and o time HVAC design engineering services. Our HVAC system design and HVAC duct design services widely available from designing to drafting. Our customer friendly approach and ability to provide prompt and value added HVAC design engineering services is what distinguishes us from others.

Designing Services in HVAC:

• Load calculation: Heating and cooling loads as per standards

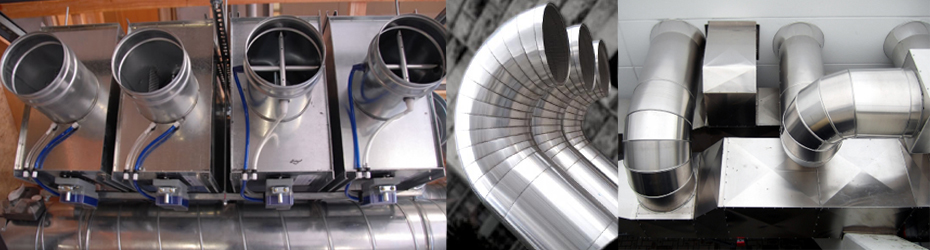

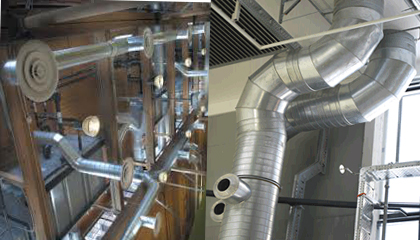

• Designing of ducts and its accessories: Determining the internal and external pressure drop calculations, acoustic calculations, duct material, sixe, length, coactions considering the construction constrains ad its layout, register locations and types along with design of accessories such as dampers, diffuser, grill, etc...
• Designing of Pipe: Determining the water flow, pipe size, fitting locations ad dielectric isolators where required in the piping system, specifying the pipe material and its size criteria.
• Equipment Selection: Determining the size of HVAC equipments in relation to the load as per standards, selecting equipments such as FCU, AHU, and ACCU, cooling Tower, Air Chiller, Water Coil, Refrigerate Coil, Package Units, Fans, Pumps, Valves and other System Accessories.
• Equipment’s Schedules: Ducting Accessories such as diffusers, grills, dampers, Air Handling Units, Chillers/DX Units and Pumps.
